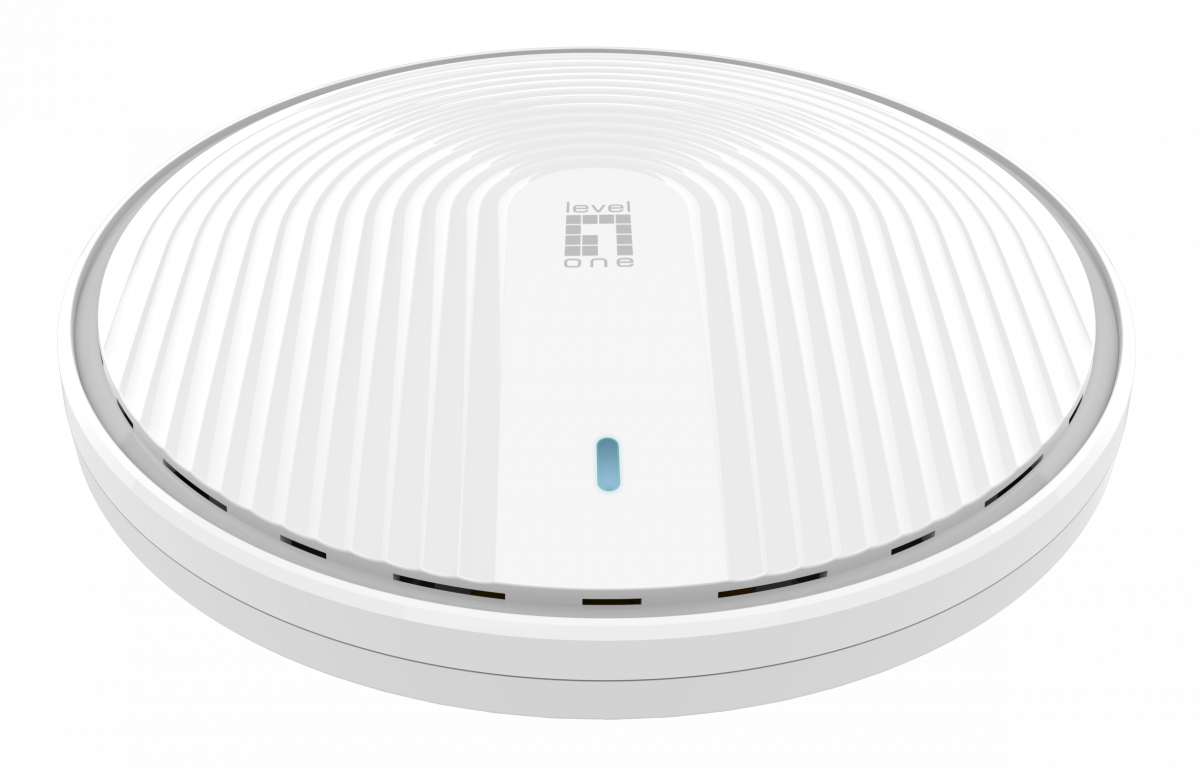

LevelOne WAP-8131 是一款獨立的 AX1800 雙頻 Wi-Fi 6 PoE 無線存取點，具有雙千兆乙太網路連接埠和先進的 802.11ax Wave 2 MU-MIMO（多用戶多輸入多輸出），可讓多個裝置同時取得高頻寬 Wi-Fi 訊號，更有效地分發資料。綜合速度可達 1775 Mbps。
WAP-8131 提供 2.4 和 5 GHz 頻率，可用作企業環境中或要求嚴格的安裝中的高品質獨立存取點。它還支援新的 WPA3 加密。當然，WAP-8131也配備了PoE，無需外部電源，簡化了安裝。一個快速、多功能且安全的接入點，可滿足各種網路需求，特別是當高速對許多用戶很重要時。

Miscellaneous

Frequency band
2.4/5GHz(Dual bands)
PoE Supported
Yes
Wireless AP type
Ceiling
Max. Wi-Fi Data Rate
1800Mbps
Others

Approval and Compliance
CE, RoHS
Operating humidity
10% RH ~ 90% RH
Operating temperature
0°C ~ 55°C
Storage humidity
5% RH ~ 90% RH
Storage temperature
0°C ~ 70°C
Package Contents
● WAP-8131
● Screw Kit
● RJ45 Network Cable
● Quick Installation Guide
● Declaration of Conformity
Physical Specifications

Dimensions (W x D x H)
186 x 186 x 42.5 mm
Product weight (kg)
0.4185
System specifications

Antenna
4 Built-in 4dBi MIMO antennas
EIRP (dBm)
< 20 dBm
Encryption
WPA2 Personal (AES), WPA3 Personal (AES)
Flash memory size
128 MB
Frequency band
2.412 to 2.484 GHz, 5.18GHz to 5.825GHz
Indicators
WIFI status
Mount
Ceiling mount
Operating modes
Gateway Mode, Repeater Mode, AP Mode
Power consumption
14 W
Power supply
Power adapter (ordered separately)
Power supply included
No
RAM size
512 MB
Standard
● IEEE 10BASE-T (IEEE 802.3)
● IEEE 100BASE-TX (IEEE 802.3u)
● IEEE 1000BASE-T (IEEE 802.3ab)
● IEEE 802.11a/b/g/n/ac/ax
● IEEE 802.3at Power over Ethernet
Wireless channels
● 2.412 to 2.484 GHz: CH 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 ● 5.150GHz to 5.850GHz : CH 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 116, 120, 124, 128, 132, 140, 149, 153, 157, 161, 165
Features 1

Features
● Web-Based GUI Configuration
● Multiple SSID (4 SSID for 2.4GHz, 4 SSID for 5GHz)
